CONTACTOR 4P (2NO+2NC) 20A AC-1 COIL 220VAC 2 3
CONTACTOR 4P (2NO+2NC) 20A AC-1 COIL 220VAC
2
3

CONTACTOR 4P (2NO+2NC) 20A AC-1 COIL 220VAC

Pilih Kontak bantu
Pilih Tegangan input
Kode Produk LC1D098M7
Nama Produk CONTACTOR 4P (2NO+2NC) 20A AC-1 COIL 220VAC
Keterangan TESYS D SCHNEIDER ELECTRIC - LC1D098M7
Brand Schneider Electric
Rated Current 20A
Pole Contact Composition 2NO+2NC
Control Circuit Voltage 220VAC
Tipe TeSys D

For a video explaining the product, click here!

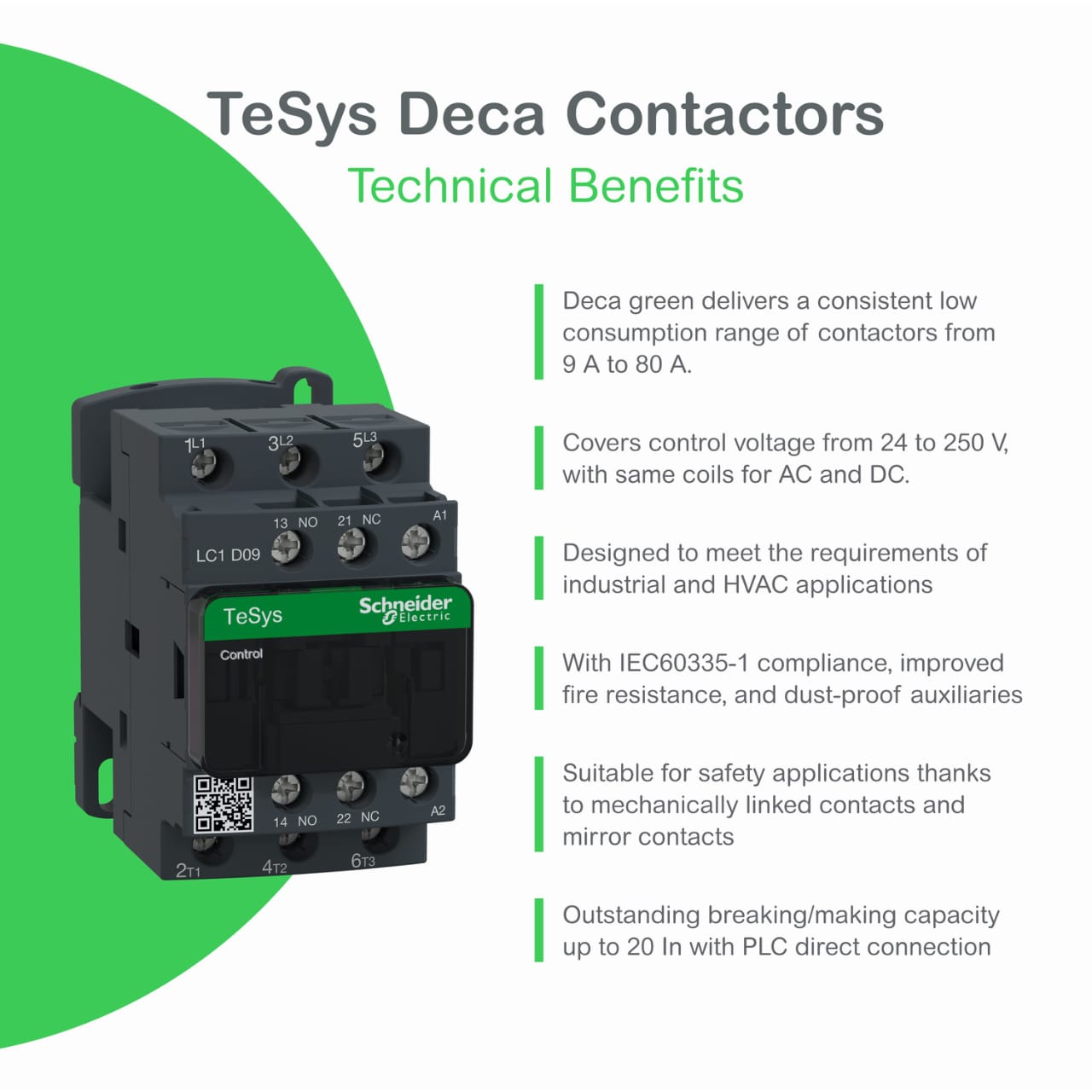

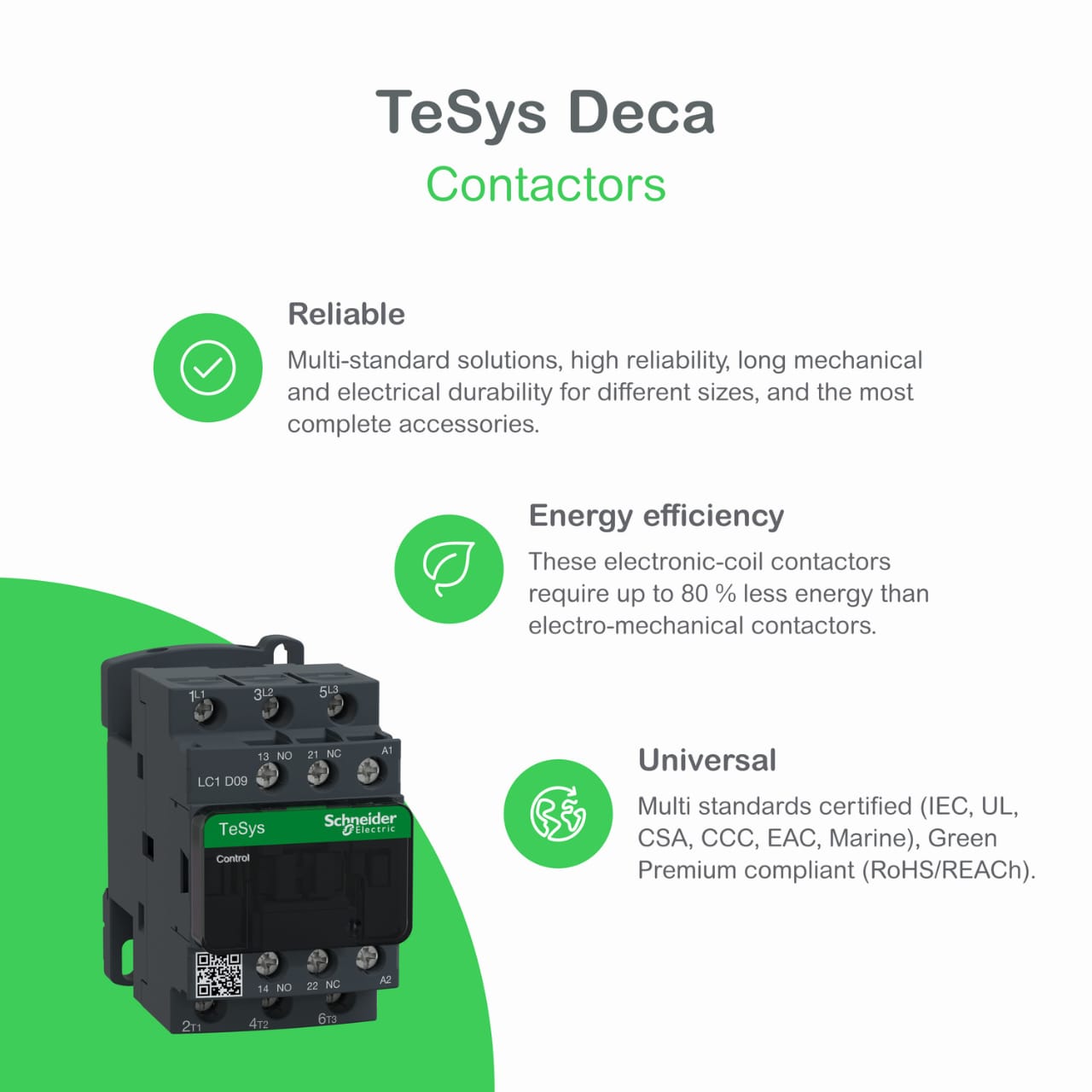

TeSys Deca contactor, 4 poles (2NO+2NC), for non-inductive load applications up to 20A/690V AC-1. It provides a 220V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability to demanding applications. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Specification
Type of electrical connection of main circuit Screw connection
Width 45 Millimetre
Rated control supply voltage AC 50 Hz 220 Volt
Rated control supply voltage AC 60 Hz 220 Volt
Number of normally closed contacts as main contact 2
Number of normally open contacts as main contact 2
Number of auxiliary contacts as normally closed contact 1
Number of auxiliary contacts as normally open contact 1
Modular version FALSE
Operating voltage AC 50 Hz 440 Volt
Operating voltage AC 60 Hz 440 Volt
Depth 92 Millimetre
Rated operation current Ie at AC-1, 400 V 25 Ampere
Height 85 Millimetre
Voltage type for actuating AC
Documents
Image of product
Image of product
Image of product
Image of product
Image of product
Image of product

Chat untuk Stock

Rp.445.665,-

45% Rp.810.300,-

Add to Cart

Free Ongkir Jabodetabek Menggunakan Kurir Toko Listrikkita
