CONTACTOR 4P (2NO+2NC) 80A AC-1 COIL 220VAC 2 3
CONTACTOR 4P (2NO+2NC) 80A AC-1 COIL 220VAC
2
3

CONTACTOR 4P (2NO+2NC) 80A AC-1 COIL 220VAC

Pilih Arus pengenal
Pilih Tegangan coil
Kode Produk LC1D65008M7
Nama Produk CONTACTOR 4P (2NO+2NC) 80A AC-1 COIL 220VAC
Keterangan TESYS D SCHNEIDER ELECTRIC - LC1D65008M7
Brand Schneider Electric
Rated Current 80A
Pole Contact Composition 2NO+2NC
Control Circuit Voltage 220VAC
Tipe TeSys D

For a video explaining the product, click here!

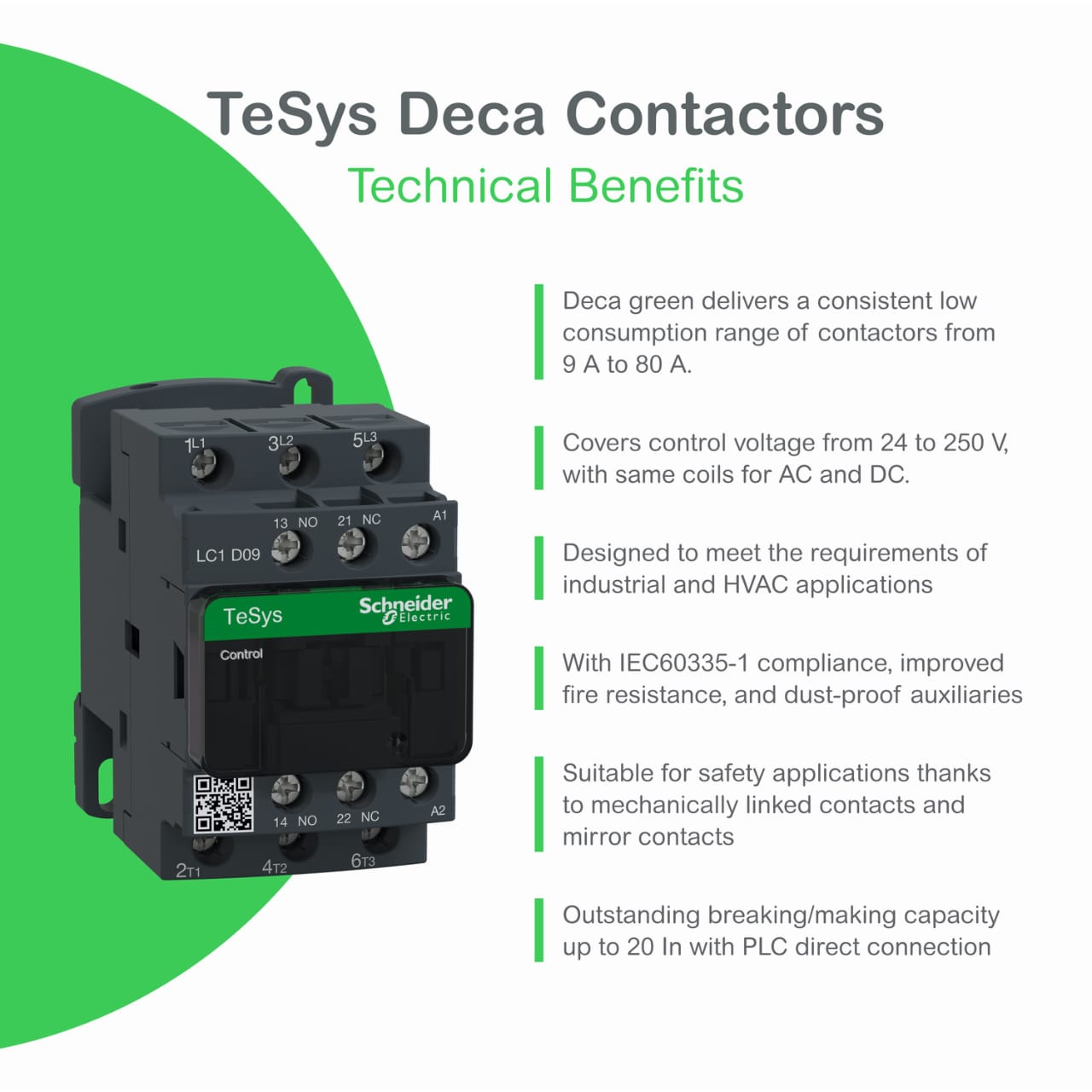

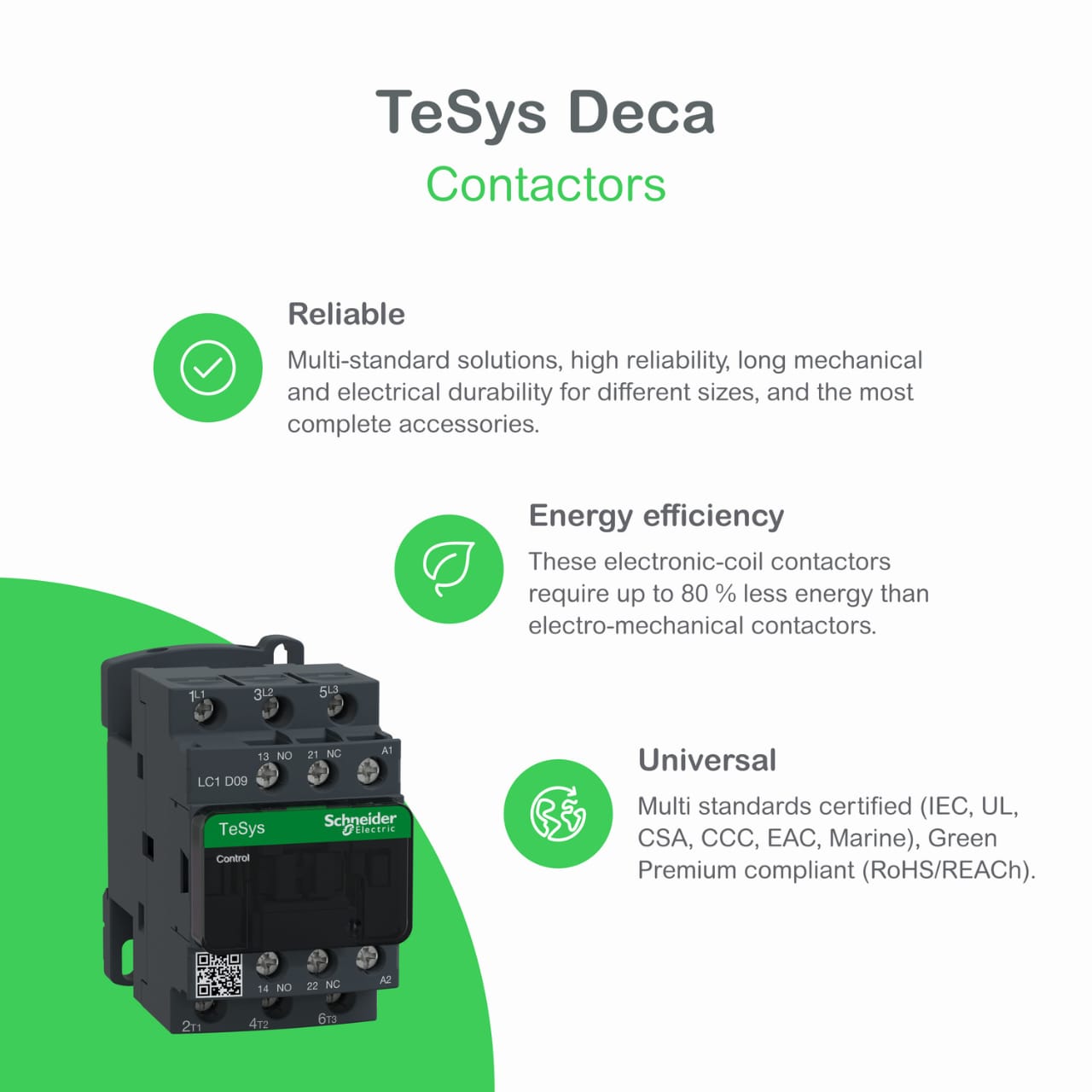

TeSys Deca contactor, 4 poles (2NO/2NC),for load control applications in category AC-1. and for non-inductive load control applications up to 80A@60℃. It provides a 220V 50/60Hz standard AC coil,without built-in auxiliary contact, connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures reliability and durability to standard applications. Very compact (55mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EN), Green Premium compliant (RoHS/REACh).

Specification
Type of electrical connection of main circuit Screw connection
Width 85 Millimetre
Rated control supply voltage AC 50 Hz 220 Volt
Rated control supply voltage AC 60 Hz 220 Volt
Number of normally closed contacts as main contact 2
Number of normally open contacts as main contact 2
Number of auxiliary contacts as normally closed contact 0
Number of auxiliary contacts as normally open contact 0
Modular version FALSE
Operating voltage AC 50 Hz 440 Volt
Depth 125 Millimetre
Operating voltage AC 60 Hz 440 Volt
Rated operation current Ie at AC-1, 400 V 80 Ampere
Height 127 Millimetre
Voltage type for actuating AC
Documents
Image of product
Image of product

Chat untuk Stock

Rp.3.010.986,-

40% Rp.5.018.310,-

Add to Cart
