CONTACTOR 4P (4NO) 60A AC-1 COIL 24VDC

Name: CONTACTOR 4P (4NO) 60A AC-1 COIL 24VDC
Brand: SCHNEIDER ELECTRIC
Price: 3951378.00 IDR
Availability: InStock

Pilih Arus pengenal

60A

80A

Pilih Tegangan coil

110VAC

220VAC

24VDC

380VAC

48VAC

Kode Produk

LC1DT60ABD

Nama Produk

CONTACTOR 4P (4NO) 60A AC-1 COIL 24VDC

Keterangan

TESYS D SCHNEIDER ELECTRIC - LC1DT60ABD

Brand

Schneider Electric

Rated Current

60A

Pole Contact Composition

4NO

Control Circuit Voltage

24VDC

Tipe

TeSys D

For a video explaining the product, click here!

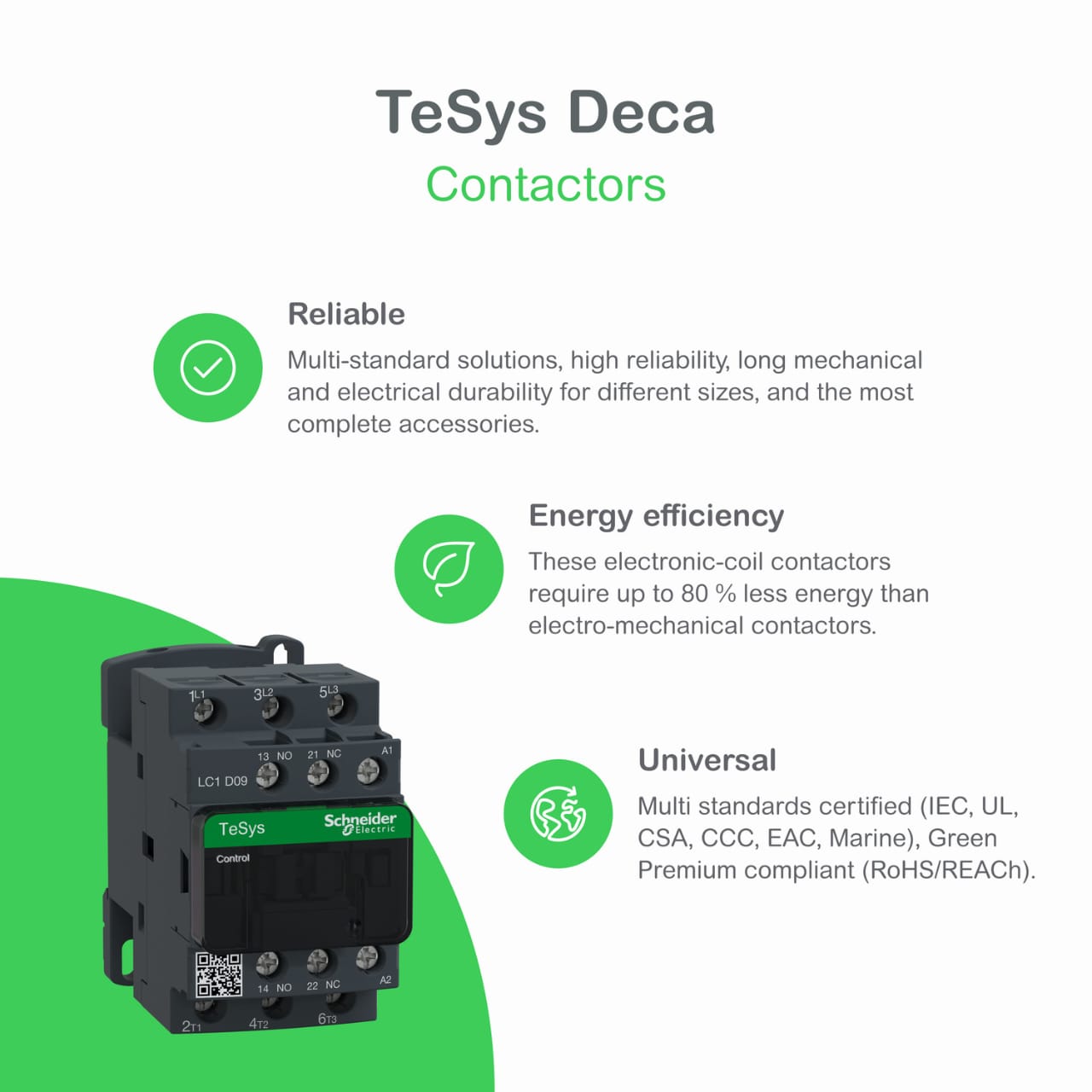

TeSys Deca contactor, 4 poles (4NO), for non-inductive load applications up to 60A/690V AC-1. It provides a 24V DC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirror certified), power connection by EverLink BTR screw connectors, control connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (70mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Specification

Type of electrical connection of main circuit	Screw connection
Width	70 Millimetre
Number of normally closed contacts as main contact	0
Number of normally open contacts as main contact	4
Number of auxiliary contacts as normally closed contact	1
Number of auxiliary contacts as normally open contact	1
Modular version	FALSE
Depth	120 Millimetre
Rated operation current Ie at AC-1, 400 V	60 Ampere
Voltage type for actuating	DC
Rated control supply voltage DC	24 Volt
Height	122 Millimetre
