CONTACTOR 4P (4NO) 80A AC-1 COIL 24VDC
| Pilih Arus pengenal |
|
||||||||||||||||||||||||
| Pilih Tegangan coil |
|
||||||||||||||||||||||||
| Kode Produk | LC1DT80ABD | ||||||||||||||||||||||||
| Nama Produk | CONTACTOR 4P (4NO) 80A AC-1 COIL 24VDC | ||||||||||||||||||||||||
| Keterangan | TESYS D SCHNEIDER ELECTRIC - LC1DT80ABD | ||||||||||||||||||||||||
| Brand | Schneider Electric | ||||||||||||||||||||||||
| Arus Pengenal | 80A | ||||||||||||||||||||||||
| Kontak Bantu | 4NO | ||||||||||||||||||||||||
| Tegangan Coil | 24VDC | ||||||||||||||||||||||||
| Tipe | TeSys D | ||||||||||||||||||||||||
|

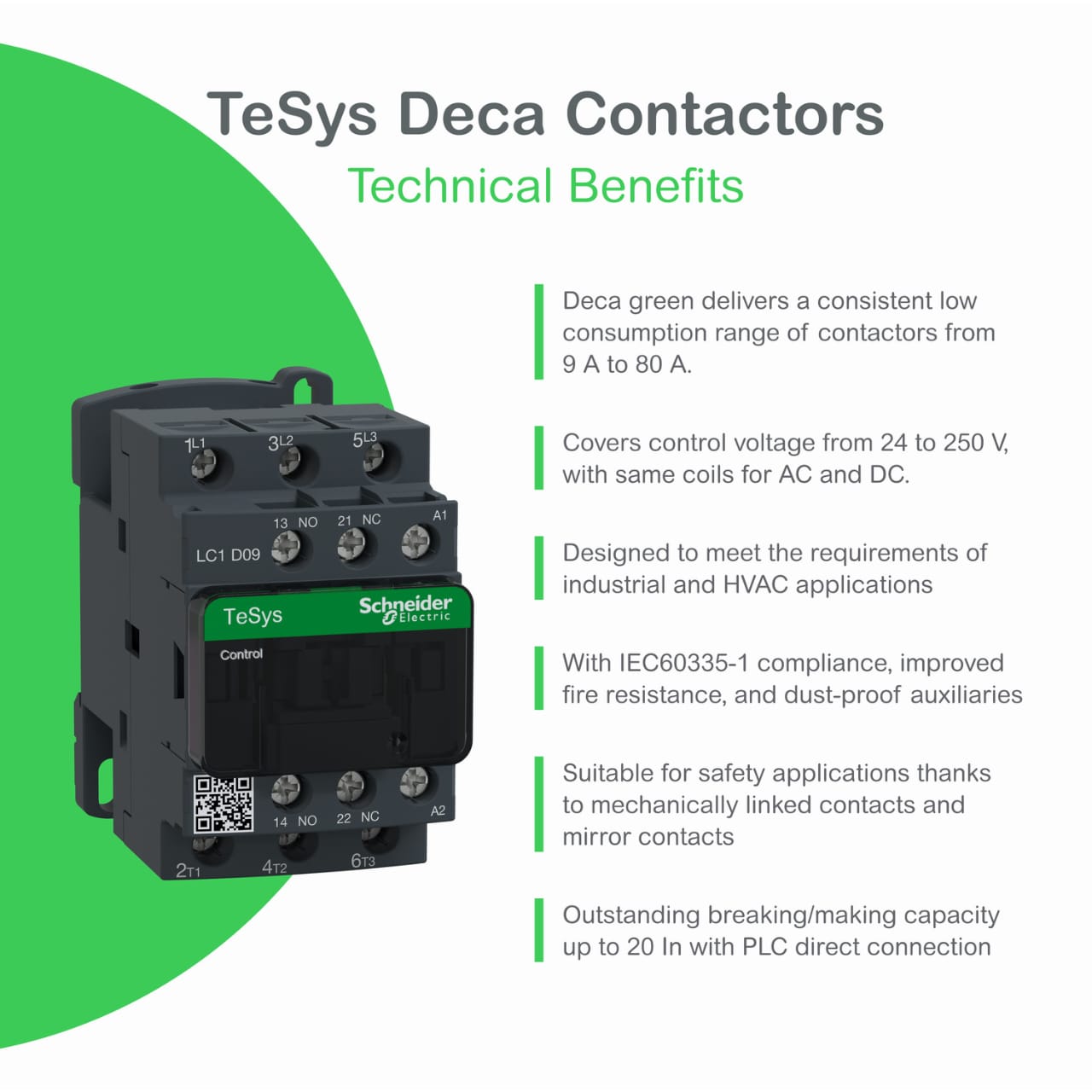

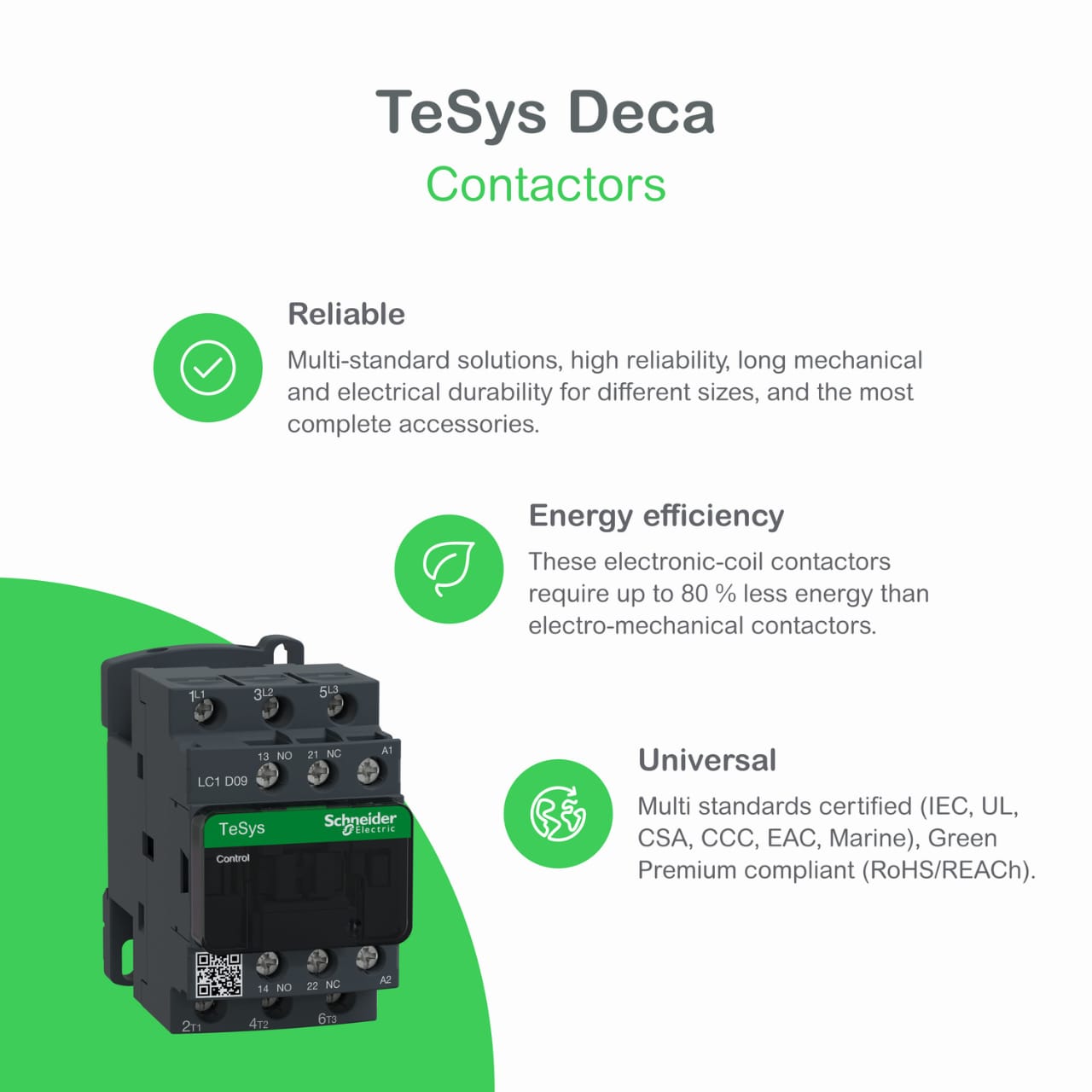

Untuk video penjelasan mengenai produk dapat klik disini! TeSys Deca contactor, 4 poles (4NO), 80A/440V AC-1, for non-inductive load applications. It provides a 24V DC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirror certified), power connection by EverLink BTR screw terminals, control connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (70mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh). Specification
