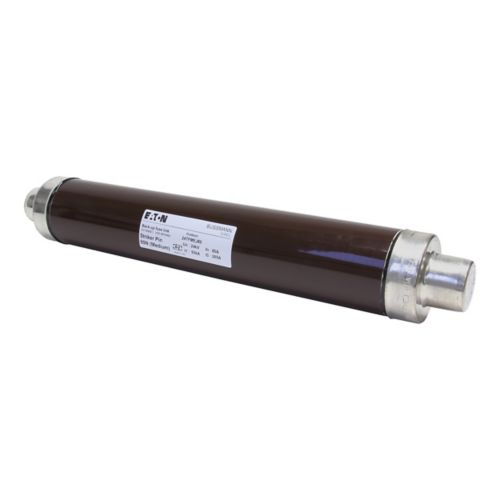

FUSE 80A 24KV WITH STRIKER

To download the 24TFMEJ80 FUSE 80A 24KV WITH STRIKER product datasheet, please click here!
To download the Eaton Fuse product datasheet, please click here!

FUSE EATON BUSSMANN

A fuse basically consists of a short, fine wire that will melt and break if it is flowed by excessive electric current or a short circuit occurs in an electrical or electronic device. With the fuse broken, excessive electric current cannot enter the electronic circuit. So as not to damage the components contained in the electronic circuit concerned.

Fuse Function :

• Electronic circuit protector
• Protects electrical equipment and electronic equipment from damage due to excessive electric current.

Product specifications

• Product Code: 24TFMEJ80
• Brand: Eaton Bussmann
• Product Name: FUSE 80A 24KV WITH STRIKER
• Description: FUSE EATON BUSSMANN - 24TFMEJ80
• Used with :
  • 270303 Fuse clip
  • A3354710 Fuse clip
• Type : Fuse
• Special features : Back-up, Transformer protection, Indoor or outdoor use
• Application :
  • Transformer protection
  • Indoor or outdoor use
• Amperage Rating : 80A
• Fuse indicator : With Striker
• Fuse size : 76 x 442mm
• Breaking capacity : 50 kA
• Installation technique : Air
• Performance Cat According To IEC 60282-1 : Back-up
• Product application : Primary side transformer protection
• Rated frequency - max : 50 Hz
• Rated frequency - min : 50 Hz
• Release characteristic : Other
• Standard : DIN
• Utilization category : Other
• Voltage type : AC
• With striker : Yes
• Class : Class back-up
• Barrels : 1
• Construction type : Bolt-on
• Pre arc (I2T) : 7.9 x 1000
• Resistance : 15.7 Ohms
• Watt losses : 153 W
• Fuse diameter : 76 mm
• Color : Brown
• Interrupt rating : 50 kAIC
• Construction size : 76 x 442 mm
• Mounting method : Clip-in
• Packaging type : Standard
• Voltage rating : 24 kV
• Fuse type : TDMEJ
• Product Length/Depth : 442 mm
• Product Height : 80 mm
• Product Width : 76 mm
• Product Weight : 51006 g
