MCB 1P 6A 6kA/10kA CURVA C
| Pilih Jumlah kutub |
|
||||||||||||||||||||||||||||||||||||||||||||||||||
| Pilih Arus pengenal |
|
||||||||||||||||||||||||||||||||||||||||||||||||||
| Kode Produk | A9F74106 | ||||||||||||||||||||||||||||||||||||||||||||||||||
| Nama Produk | MCB 1P 6A 6kA/10kA CURVA C | ||||||||||||||||||||||||||||||||||||||||||||||||||
| Keterangan | ACTI9 IC60N SCHNEIDER ELECTRIC - A9F74106 | ||||||||||||||||||||||||||||||||||||||||||||||||||
| Brand | Schneider Electric | ||||||||||||||||||||||||||||||||||||||||||||||||||
| Poles | 1P | ||||||||||||||||||||||||||||||||||||||||||||||||||
| Rated Current | 6A | ||||||||||||||||||||||||||||||||||||||||||||||||||
| Breaking Capacity | 6kA | ||||||||||||||||||||||||||||||||||||||||||||||||||
| Tipe | MCB Acti9 | ||||||||||||||||||||||||||||||||||||||||||||||||||
|
Download the A9F74106 MCB 1P 6A 6kA/10kA CURVA C SCHNEIDER ELECTRIC product datasheet, by clicking here! Function of the Miniature Circuit Breaker (MCB):

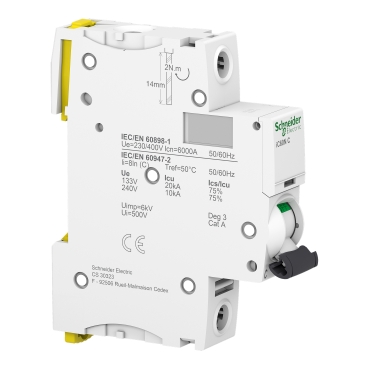

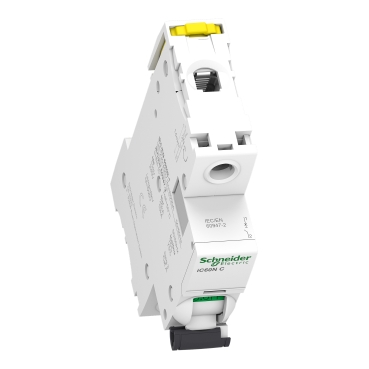

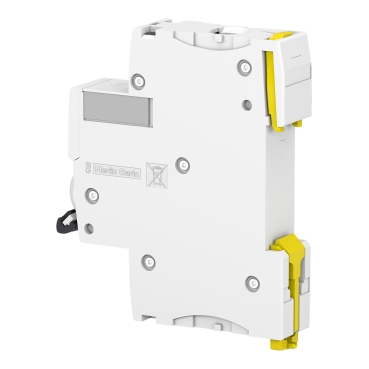

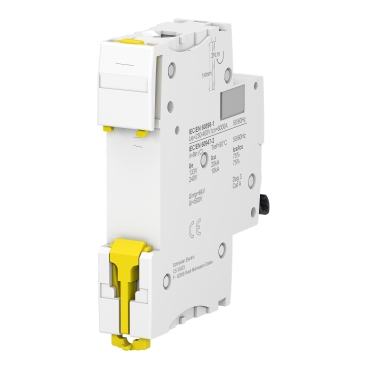

Schneider Electric Acti9 Miniature Circuit Breaker - MCB What is a Miniature Circuit Breaker (MCB)? A Miniature Circuit Breaker (MCB) is a safety device that protects electrical circuits from overloads and short circuits. Schneider Electric's product range, including the Acti9 C120 and Acti9 xC60, offers low-noise protection for safer homes and industrial environments. You can shop safely at ListrikKita.com because all the goods we sell are guaranteed to be 100% genuine, have an official guarantee, and can be accompanied by a letter of authenticity. To get the best MCB prices and further information, please contact our sales or marketing team by clicking here. Happy shopping. This Acti9 iC60N is a low voltage miniature circuit breaker (MCB). It is a 1P circuit breaker with 1 protected pole, 6A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 10kA at 220VAC to 240VAC conforming to EN/IEC 60947-2 standard and 6000A at 230VAC conforming to EN/IEC 60898-1 standard. It complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. This miniature circuit breaker protects circuits against short circuit and overload current. Its unique VisiTrip indicator reduces intervention time by showing the faulty circuit. Its VisiSafe green strip guarantees the physical opening of the contacts to allow downstream maintenance. Its fast closing mechanism independent of manual operation improves its service life. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ui rated insulation voltage is 500VAC. Its limitation class 3 (according to EN/IEC60898-1) improves downstream circuit protection cost. The product can be clipped on a DIN rail. Its width is 2 pitches of 9mm. Pollution degree is 3. Overvoltage category is IV. The product colour is white (RAL9003). The dimensions are (W) 18mm x (H) 85mm x (D) 78.5mm. The weight is 0.215kg. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is -35°C to 70°C. The storage temperature is -40°C to 85°C. Specification
Documents
|
|||||||||||||||||||||||||||||||||||||||||||||||||||
