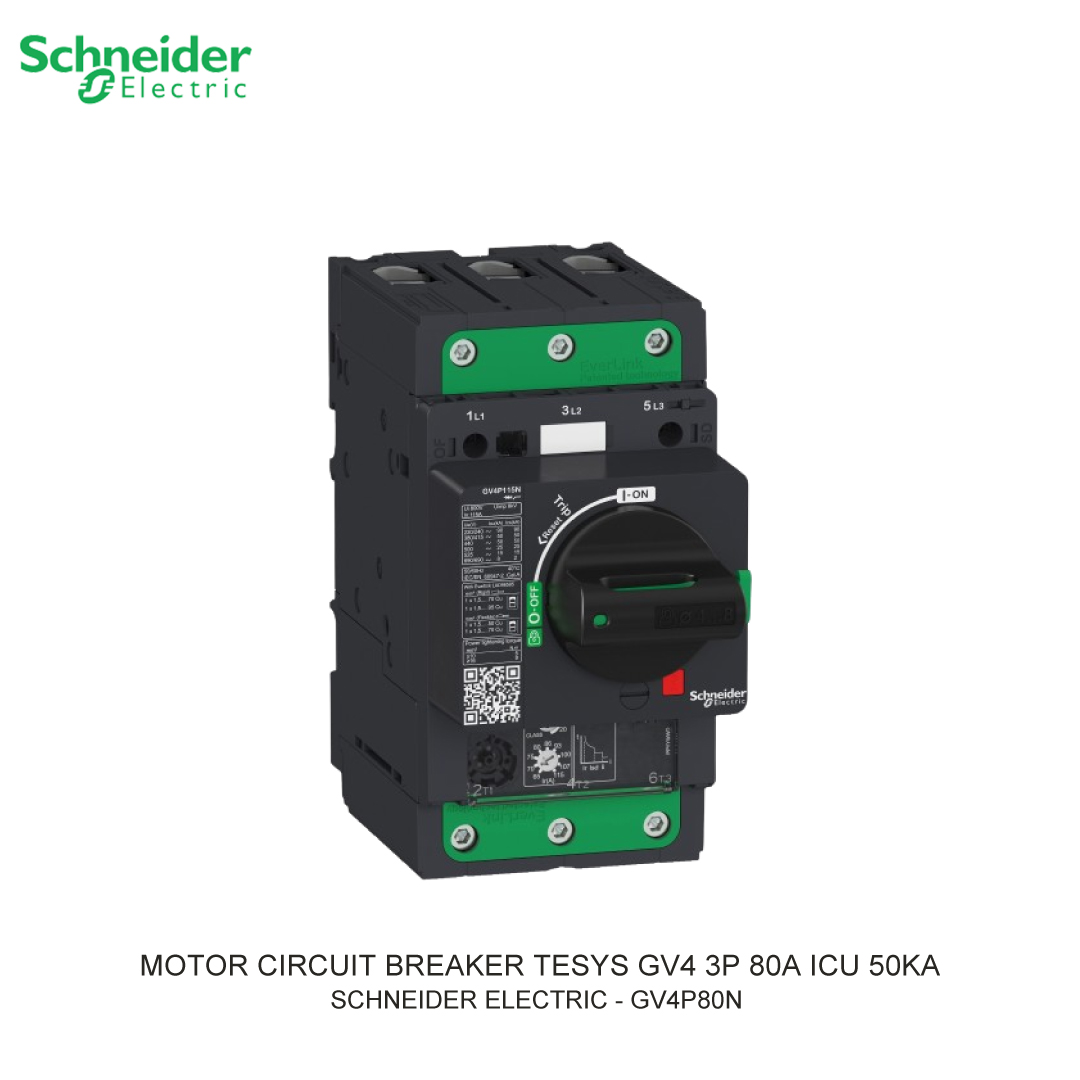

MOTOR CIRCUIT BREAKER TESYS GV4 3P 80A ICU 50KA THERMAL MAGNETIC EVERLINK TERMINALS

Download the GV4PE80N MOTOR CIRCUIT BREAKER TESYS GV4 3P 80A ICU 50KA THERMAL MAGNETIC EVERLINK TERMINALS SCHNEIDER ELECTRIC product datasheet, by clicking  here!

Technical Characteristic:

• Product Code : GV4PE80N
• Brand : Schneider Electric
• Product Name : MOTOR CIRCUIT BREAKER TESYS GV4 3P 80A ICU 50KA THERMAL MAGNETIC EVERLINK TERMINALS
• Description : MOTOR CIRCUIT BREAKER GV4PE SCHNEIDER ELECTRIC - GV4PE80N
• Range of product : TeSys GV4
• Range : TeSys Deca
• Device short name : GV4PE
• product name : TeSys GV4
• Product or component type : Motor circuit breaker
• Device application : Motor protection
• Trip unit technology :
  Thermal-magnetic
  Electronic
• Poles description : 3P
• control type : Toggle
• [In] rated current : 80 A
• Magnetic tripping current : 1360 A
• [Ue] rated operational voltage : 690 V AC 50/60 Hz conforming to IEC 60947-2
• [Ui] rated insulation voltage : 800 V AC 50/60 Hz conforming to IEC 60947-2
• [Ith] conventional free air thermal current : 115 A conforming to IEC 60947-4-1
• [Uimp] rated impulse withstand voltage : 8 kV conforming to IEC 60947-2
• Power dissipation per pole : 4.6 W
• Mechanical durability : 40000 cycles
• Height : 155 mm
• Width : 81 mm
• Depth : 116 mm
• Net weight : 1.45 kg
• Colour : Grey (RAL 7016)
• Warranty : 18 months

Schneider Electric TeSys Deca - frame 4

TeSys Deca Frame 4 is a compact and powerful cutting-edge technology. The electronic core of the reference. GV4P provides outstanding detection accuracy, as well as advanced and impact protection for the reference. GV4PEM and GV4PB. Magnetic, electronic thermal-magnetic or electronic thermal magnetic versions with further levels of protection.

You can shop safely at ListrikKita.com because all the items we sell are guaranteed 100% original, officially guaranteed, and can be accompanied by a letter of authenticity of the goods. For more information or to make a large purchase, please contact our sales or marketing team by clicking here. Happy shopping!

TeSys GV motor circuit breaker, 3 poles (3P), 80A/690V, for protection of 3-phase motors 22-37kW@400V. It provides thermal magnetic protection and additional motor protection functions, breaking capacity Icu 50kA@400V, start-stop control by toggle, connection by Everlink BTR screw terminals. Thermal protection adjustable by dials with a setting current Ir in range 40-80A and a selectable tripping class 10 or 20, magnetic protection at 17 In. Additional protections have fixed pick-up and include short time delay protection Isd at 13 Ir, phase unbalance and loss protection, ground fault protection. It makes internal locations available for additional auxiliary contact blocks (OF, SD), and voltage trip units (MN, MX). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh).

Specification

Type of electrical connection of main circuit	Screw connection
Width	81 Millimetre
Type of control element	Rocker lever
Rated operation power at AC-3, 400 V	37 Kilowatt
With integrated auxiliary switch	FALSE
Overload release current setting	40…80 Ampere
Switch off technique	Electronic
Rated permanent current Iu	80 Ampere
Depth	116 Millimetre
Rated operating voltage	690 Volt
Rated operation power at AC-3, 230 V	22 Kilowatt
Number of poles	3
Phase failure sensitive	TRUE
Rated short-circuit breaking capacity lcu at 400 V, AC	50 kiloampere
With integrated under voltage release	FALSE
Height	155 Millimetre
Adjustment range undelayed short-circuit release	1360 Ampere
Power loss	13.8 Watt
With thermal overload protection	TRUE
Degree of protection (IP)	IP40
Device construction	Complete device in housing

Documents

• Circularity Profile - MotBreak GV4P Therm/Mag 115A 50kA Elink
• Environmental Disclosure - MotBreak GV4P Therm/Mag 115A 50kA Elink
• Instruction sheet - TeSys GV4P - Motor Circuit Breakers - Instruction Sheet
• User guide - TeSys Power - Deca Motor Circuit Breakers Frame 4 - Use in Explosive Atmospheres
• Catalog - TeSys - Catalog 2025 - Innovative and connected solutions for motor starters
