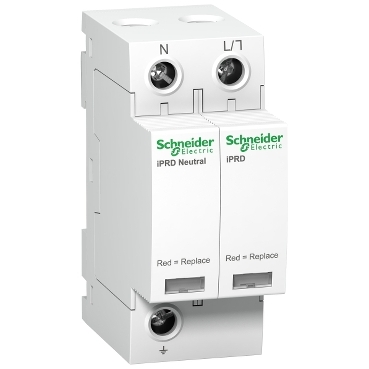

SURGE ARRESTER 1P+N 8KA 350V
| Pilih Jumlah kutub |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Pilih I maks (ka) |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Kode Produk | A9L08501 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Nama Produk | SURGE ARRESTER 1P+N 8KA 350V | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Keterangan | IPRD 8R WITH REMOTE TRANSF SCHNEIDER ELECTRIC - A9L08501 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Brand | Schneider Electric | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Poles | 1P+N | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Breaking Capacity | 8kA | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Tipe | Surge Arrester | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Download the A9L08501 iPRD8r Modular Surge Arrester 1P + N 350V with Remote Transfert datasheet by clicking here! Surge Arrester Schneider Electric Surge Arrester is a tool that can protect electrical equipment from voltage or electric current drivers caused by external forces (such as lightning) or internal forces. Generally, this tool is installed at the entry point of the electrical system, which aims to protect the entire electrical system from potential electrical damage caused by sudden surges of electric current. Surge Arrester Function:
Technical Characteristics:
You can shop safely at ListrikKita.com because all the items we sell are guaranteed 100% original, officially guaranteed, and can be accompanied by a letter of authenticity of the goods. For more information or to make a large purchase, please contact our sales or marketing team by clicking here. Happy shopping! This Acti9 iPRD8r surge arrester protects 1P+N installations. It allows quick replacement of damaged cartridges. The Imax maximum discharge current is 8kA .The In nominal discharge current is 2.5kA. The iPRD8r ensures secondary protection of loads to be protected and is placed in cascade with the incoming surge arresters. This surge arrester is required when the loads to be protected are at a distance of more than 10 m from the incoming surge arrester. The surge arresters with "r" indication have remote transfer of the information "Cartridge to be replaced". The Uc maximum continuous operating voltage in common mode is 260VAC between neutral and earth, and is 350VAC between phase and earth. The Uc maximum continuous operating voltage in differential mode (between phase and neutral) is 350VAC. The Up Voltage protection level in common mode is 1.4kV between neutral and earth in type 2, and 1.1kV between neutral and earth in type 3. The Up Voltage protection level in differential mode (between phase and neutral) is 1kV in type 2, and 1.1kV in type 3. The Ue rated operational voltage is 230VAC +/- 10%. The product colour is white (RAL9003).The dimensions are (W) 36mm x (H) 85mm x (D) 69mm. The weight is 215g. The degree of protection is IP20 and IP40 in modular enclosure. The operating temperature is -25°C to 60°C. The storage temperature is -40°C to 85°C. This product is compliant with EN 61643-11 and IEC 61643-11 standards. Specification
Documents
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
